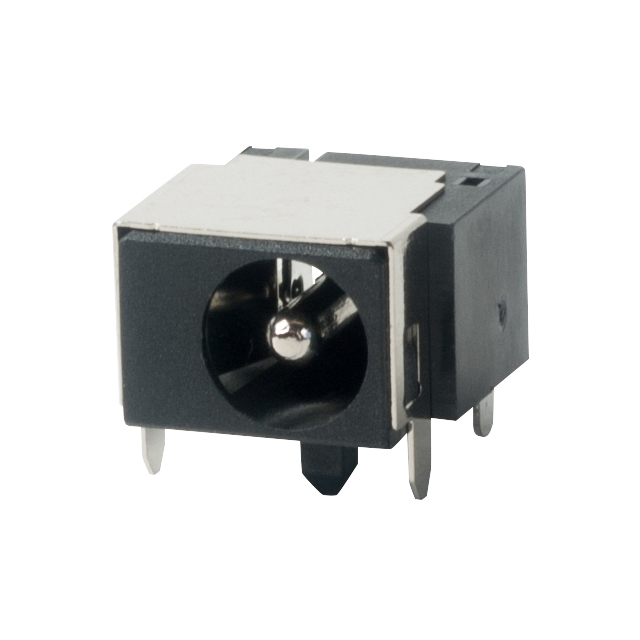

PJ-076
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-076 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-076 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-076 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.65X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.208 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-076 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.65X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113987 pcs | Data sheet | PJ-076 |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Shielded | Series | - |
| Packaging | Bulk | Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 3 Conductors, 4 Contacts | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.323" (8.20mm) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 1.65mm ID (0.065"), 5.50mm OD (0.217") | Includes | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Male |
| Features | Board Guide | Detailed Description | Power Barrel Connector Jack 1.65mm ID (0.065"), 5.50mm OD (0.217") Through Hole, Right Angle |
| Current Rating | 2.5A | Contact Material - Plating | Tin |
| Contact Material | Brass; Copper Alloy | Connector Type | Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Body Material | - |
| Body Color | Black | Actual Diameter | 0.065" (1.65mm ID), 0.236" (6.00mm OD) |
