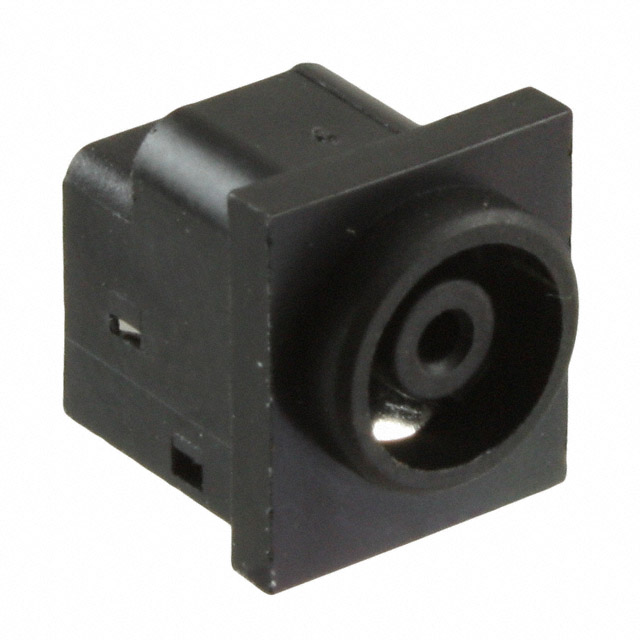

PJ-025
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-025 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-025 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-025 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.4X4.3X6.5MM SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.275 | $0.257 | $0.232 | $0.206 | $0.197 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.18 | $0.172 | $0.142 | $0.129 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-025 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.4X4.3X6.5MM SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 171838 pcs | Data sheet | PJ-025 |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-0952R CP-025 PJ025 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.354" (9.00mm) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 1.40mm ID (0.055"), 4.30mm ID (0.169"), 6.50mm OD (0.256") EIAJ-5 |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 1.40mm ID (0.055"), 4.30mm ID (0.169"), 6.50mm OD (0.256") EIAJ-5 Through Hole, Right Angle | Current Rating | 3A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.057" (1.45mm ID), 0.157" (4.00mm OD) |
