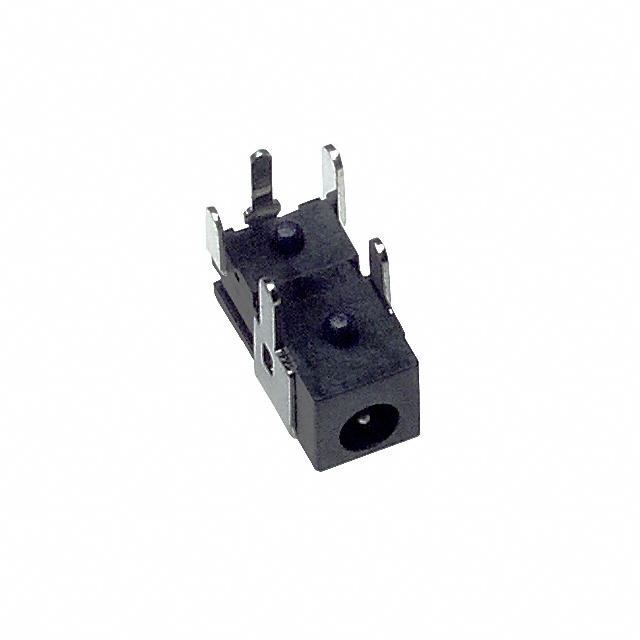

PJ-023
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-023 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-023 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-023 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 0.7X2.35MM SOLDER |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-023 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 0.7X2.35MM SOLDER | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 5292 pcs | Data sheet | PJ-023 |
| Category | Connectors, Interconnects | Voltage - Rated | 16VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Shielded | Series | - |
| Packaging | Bulk | Other Names | CP-023 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Mating Length/Depth | - | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 | Includes | - |
| Housing Material | Polyamide (PA), Nylon | Gender | Male |
| Features | Board Guide | Detailed Description | Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle |
| Current Rating | 1A | Contact Material - Plating | Silver |
| Contact Material | Brass | Connector Type | Jack |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.026" (0.65mm ID), 0.108" (2.75mm OD) |
