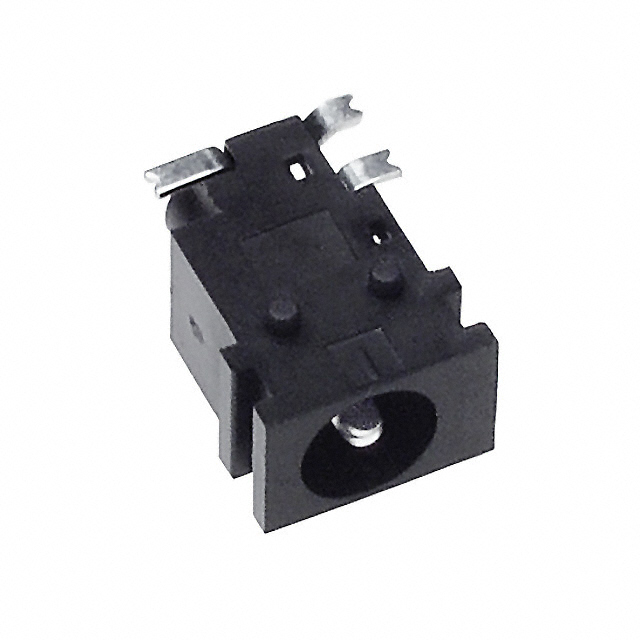

PJ-021-SMT-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-021-SMT-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-021-SMT-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-021-SMT-1 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.75X4.75MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | PJ-021-SMT-1 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.75X4.75MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5812 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage - Rated | 16VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | CP-021-SMT-1 CP-021-SMT-1-ND CP-021PJ |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | - |
| Mating Length/Depth | 0.315" (8.00mm) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 1.75mm ID (0.068"), 4.75mm OD (0.187") | Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Gender | Male |
| Features | - | Detailed Description | Power Barrel Connector Jack 1.75mm ID (0.068"), 4.75mm OD (0.187") Surface Mount, Right Angle |
| Current Rating | 5A | Contact Material - Plating | Silver |
| Contact Material | Brass; Copper Alloy | Connector Type | Jack |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.065" (1.65mm ID), 0.203" (5.15mm OD) |
