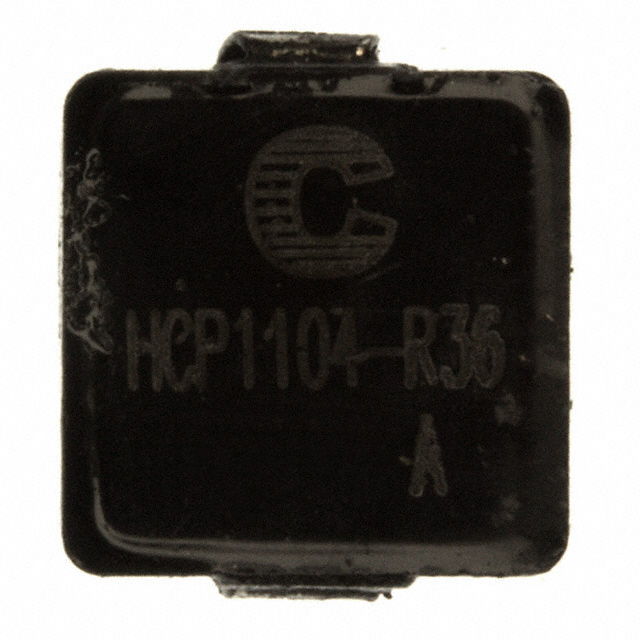

HCP1104-R36-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCP1104-R36-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCP1104-R36-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCP1104-R36-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 360NH 30A 1.2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCP1104-R36-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 360NH 30A 1.2 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5226 pcs | Data sheet | HCP1104 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Shielding | Unshielded |
| Series | HCP1104 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1372-1 HCP1104R36R |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 360nH | Height - Seated (Max) | 0.157" (4.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 360nH Unshielded Wirewound Inductor 30A 1.2 mOhm Max Nonstandard |
| DC Resistance (DCR) | 1.2 mOhm Max | Current Rating | 30A |
| Current - Saturation | 40A |
