HCP0805-1R0-R

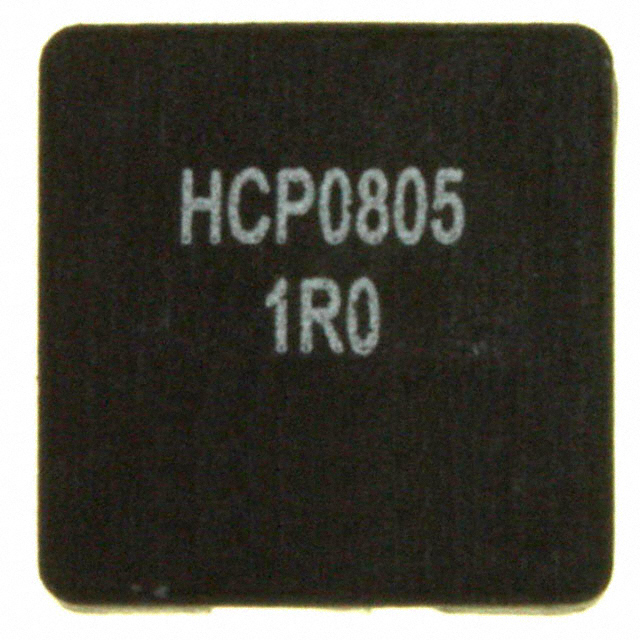

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCP0805-1R0-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCP0805-1R0-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCP0805-1R0-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 1UH 14.5A 5.8 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.135 | $1.046 | $0.732 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCP0805-1R0-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 1UH 14.5A 5.8 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47113 pcs | Data sheet | HCP0805 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.303" L x 0.291" W (7.70mm x 7.40mm) | Shielding | Shielded |
| Series | HCP0805 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 513-1646-1 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1µH |
| Height - Seated (Max) | 0.197" (5.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 1µH Shielded Wirewound Inductor 14.5A 5.8 mOhm Nonstandard | DC Resistance (DCR) | 5.8 mOhm |
| Current Rating | 14.5A | Current - Saturation | 22A |
