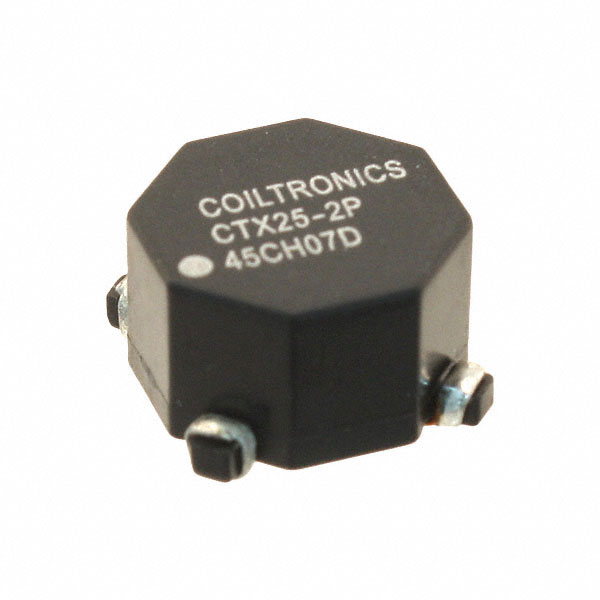

CTX25-2P-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX25-2P-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX25-2P-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX25-2P-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 24.79UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.259 | $1.152 | $0.754 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX25-2P-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 24.79UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46744 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Shielding | Unshielded |
| Series | Econo-Pac™ | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Nonstandard |
| Other Names | 513-1235-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 99.14µH |
| Inductance - Connected In Parallel | 24.79µH | Height | 0.235" (5.97mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 99.14µH Inductance - Connected in Series 24.79µH Inductance - Connected in Parallel 109 mOhm Max DC Resistance (DCR) - Parallel 1.4A Nonstandard | DC Resistance (DCR) - Series | 436 mOhm Max |
| DC Resistance (DCR) - Parallel | 109 mOhm Max | Current Rating - Series | 700mA |
| Current Rating - Parallel | 1.4A |
