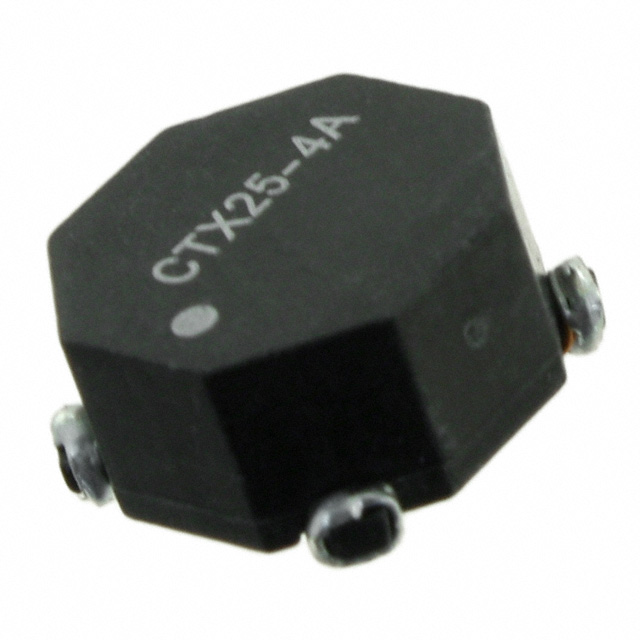

CTX25-4A-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX25-4A-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX25-4A-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX25-4A-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 25.14UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $1.05 | $0.984 | $0.951 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX25-4A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 25.14UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36293 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±25% |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Shielding | Unshielded |
| Series | OCTA-PAC® PLUS | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 513-1810-2 CTX25-4A CTX25-4A-ND CTX25-4A-R-ND CTX254AR |
Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 100.51µH |
| Inductance - Connected In Parallel | 25.14µH | Height | 0.250" (6.35mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 100.51µH Inductance - Connected in Series 25.14µH Inductance - Connected in Parallel 48 mOhm Max DC Resistance (DCR) - Parallel 3.02A Nonstandard | DC Resistance (DCR) - Series | 193 mOhm Max |
| DC Resistance (DCR) - Parallel | 48 mOhm Max | Current Saturation - Series | 1.32A |
| Current Saturation - Parallel | 2.65A | Current Rating - Series | 1.51A |
| Current Rating - Parallel | 3.02A |
