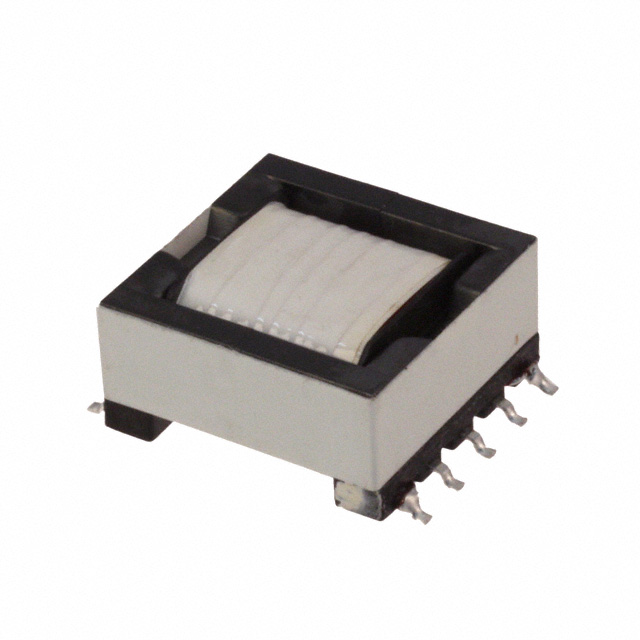

CTX22-15557
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX22-15557 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX22-15557 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX22-15557 |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 1MH 1.3A 470 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.688 | $3.411 | $2.766 | $2.581 | $2.452 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX22-15557 | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | FIXED IND 1MH 1.3A 470 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12228 pcs | Data sheet | CTX22-15557 |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | - | Supplier Device Package | 10-SMT |
| Size / Dimension | 1.252" L x 1.063" W (31.80mm x 27.00mm) | Shielding | Unshielded |
| Series | PFC | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | 10-SMD, Gull Wing | Other Names | 513-1659 CTX2215557 |
| Operating Temperature | -20°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1mH |
| Height - Seated (Max) | 0.516" (13.10mm) | Frequency - Self Resonant | - |
| Detailed Description | 1mH Unshielded Toroidal Inductor 1.3A 470 mOhm Max 10-SMD, Gull Wing | DC Resistance (DCR) | 470 mOhm Max |
| Current Rating | 1.3A | Current - Saturation | - |
