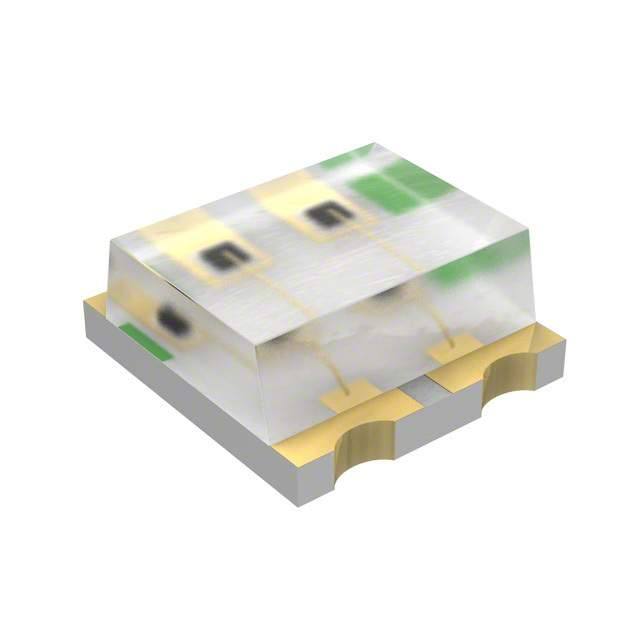

HSMF-C114
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSMF-C114 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSMF-C114 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSMF-C114 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RGB DIFFUSED CHIP SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | ||
|---|---|---|---|---|---|
| $0.26 | $0.25 | $0.245 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSMF-C114 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RGB DIFFUSED CHIP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78434 pcs | Data sheet | HSMF-C114LED Solutions Selection Guide |
| Category | Optoelectronics | Wavelength - Peak | 637nm Red, 523nm Green, 468nm Blue |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue | Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.4V Green, 3.4V Blue |
| Viewing Angle | 140° Red, 145° Green, 145° Blue | Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.50mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 0606 (1616 Metric) |
| Other Names | 516-1795-2 HSMF-C114-ND HSMFC114 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Millicandela Rating | 85mcd Red, 180mcd Green, 70mcd Blue |
| Manufacturer Standard Lead Time | 5 Weeks | Lens Transparency | Diffused |
| Lens Style/Size | Rectangle with Flat Top, 1.10mm x 1.50mm | Lens Color | White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.35mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.4V Green, 3.4V Blue 0606 (1616 Metric) |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) | Base Part Number | HSMF-C11 |
