HSMF-A341-A00J1

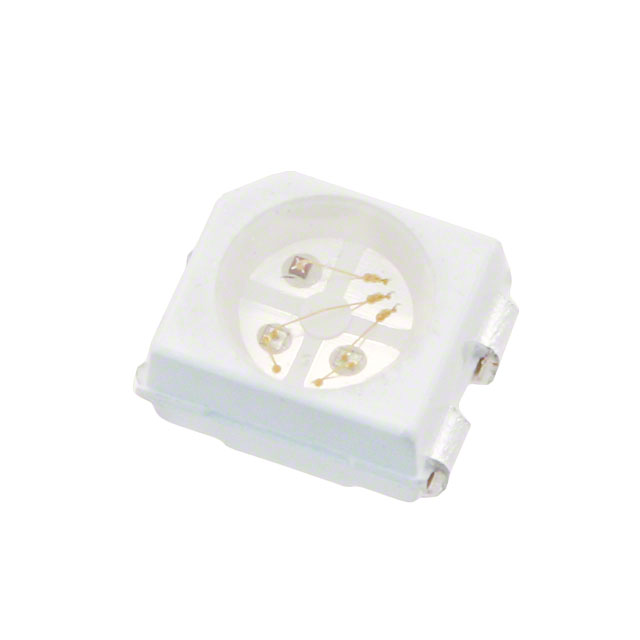

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSMF-A341-A00J1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSMF-A341-A00J1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSMF-A341-A00J1 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RGB CLEAR 4PLCC SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.374 | $0.359 | $0.352 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSMF-A341-A00J1 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RGB CLEAR 4PLCC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59692 pcs | Data sheet | HSMx-A2/A3 Series |
| Category | Optoelectronics | Wavelength - Peak | 635nm Red, 523nm Green, 468nm Blue |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue | Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.4V Green, 3.4V Blue |
| Viewing Angle | 120° | Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-PLCC |
| Other Names | 516-2231-2 HSMF-A341-A00J1-ND HSMFA341A00J1 Q2039136 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Millicandela Rating | 80mcd Red, 160mcd Green, 40mcd Blue |
| Manufacturer Standard Lead Time | 5 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Round with Flat Top, 2.20mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.10mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.4V Green, 3.4V Blue 4-PLCC |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) | Base Part Number | HSMF-A3* |
