Home > Products > RF/IF and RFID > RF Directional Coupler > X3C19P1-03S

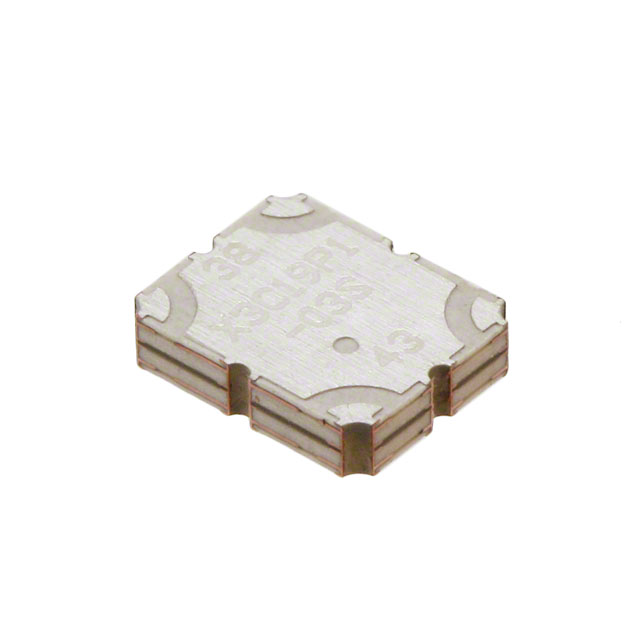

X3C19P1-03S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy X3C19P1-03S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	X3C19P1-03S
Manufacturer	Anaren
Description	RF DIR COUPLER 1.4GHZ-2GHZ SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 59547 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.54

Product parameter
Data sheet

Product parameter

Part Number	X3C19P1-03S	Manufacturer	Anaren
Description	RF DIR COUPLER 1.4GHZ-2GHZ SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59547 pcs	Data sheet	X3C19P1-03S
Category	RF/IF and RFID	Supplier Device Package	SMD
Series	Xinger III®	Return Loss	24.9dB
Power - Max	90W	Packaging	Tape & Reel (TR)
Package / Case	2520 (6450 Metric)	Other Names	1173-1109-2 X3C19P103S
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolation	23dB
Insertion Loss	0.22dB	Frequency	1.4GHz ~ 2GHz
Detailed Description	RF Directional Coupler DCS, LTE, PCS, WCDMA 1.4GHz ~ 2GHz 3dB 90W 2520 (6450 Metric)	Coupling Factor	3dB
Coupler Type	Standard	Applications	DCS, LTE, PCS, WCDMA
