Home > Products > RF/IF and RFID > RF Directional Coupler > X3C09P2-03S

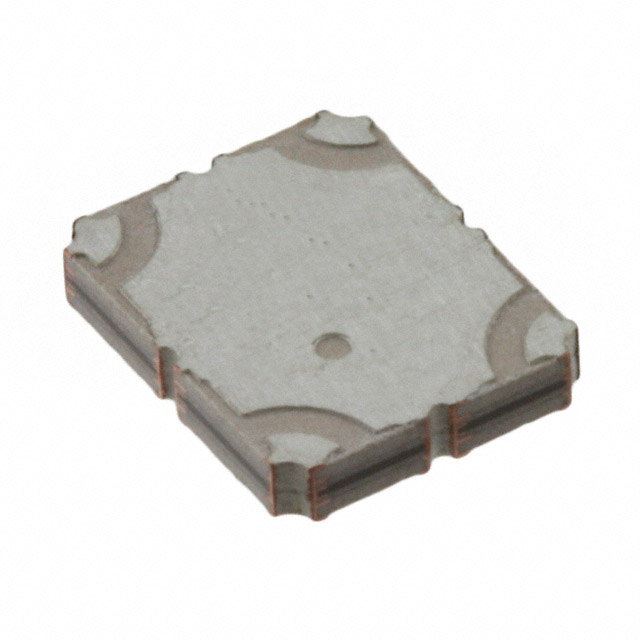

X3C09P2-03S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy X3C09P2-03S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	X3C09P2-03S
Manufacturer	Anaren
Description	RF DIR COUPLER 800MHZ-1GHZ 4SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 41178 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$1.365	$1.22	$1.098
	$1.001	$0.903	$0.81

Product parameter
Data sheet

Product parameter

Part Number	X3C09P2-03S	Manufacturer	Anaren
Description	RF DIR COUPLER 800MHZ-1GHZ 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41178 pcs	Data sheet	X3C09P2-03S
Category	RF/IF and RFID	Supplier Device Package	4-SMD
Series	Xinger III®	Return Loss	24.9dB
Power - Max	187W	Packaging	Cut Tape (CT)
Package / Case	2520 (6450 Metric)	Other Names	1173-1106-1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolation	23dB
Insertion Loss	0.2dB	Frequency	800MHz ~ 1GHz
Detailed Description	RF Directional Coupler AMPS, CDMA, WCDMA 800MHz ~ 1GHz 3dB 187W 2520 (6450 Metric)	Coupling Factor	3dB
Coupler Type	Standard	Applications	AMPS, CDMA, WCDMA
