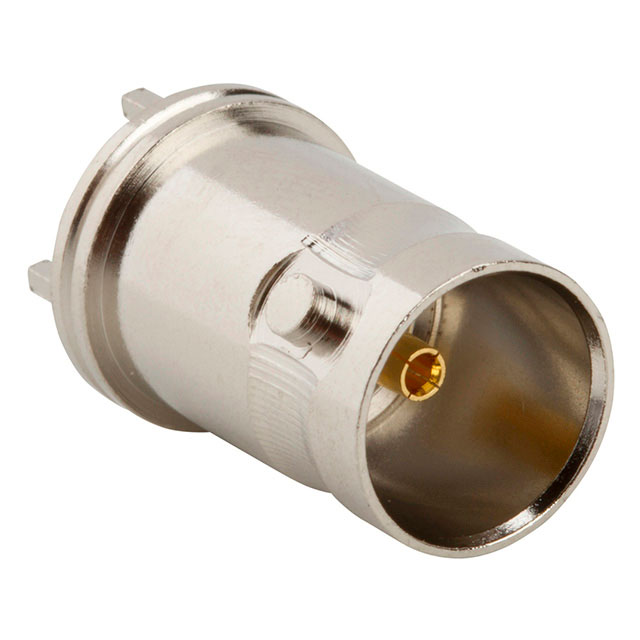

031-70536-12G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70536-12G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70536-12G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70536-12G |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC STRAIGHT JACK 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.268 | $2.173 | $1.984 | $1.889 | $1.795 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.606 | $1.511 | $1.323 | $1.256 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70536-12G | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC STRAIGHT JACK 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31500 pcs | Data sheet | 031-70536-12G Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | - |
| Other Names | ARF2664 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Through Hole |
| Mounting Feature | - | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 12GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Receptacle, Female Socket 75 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Brass | Body Finish | Tin |
