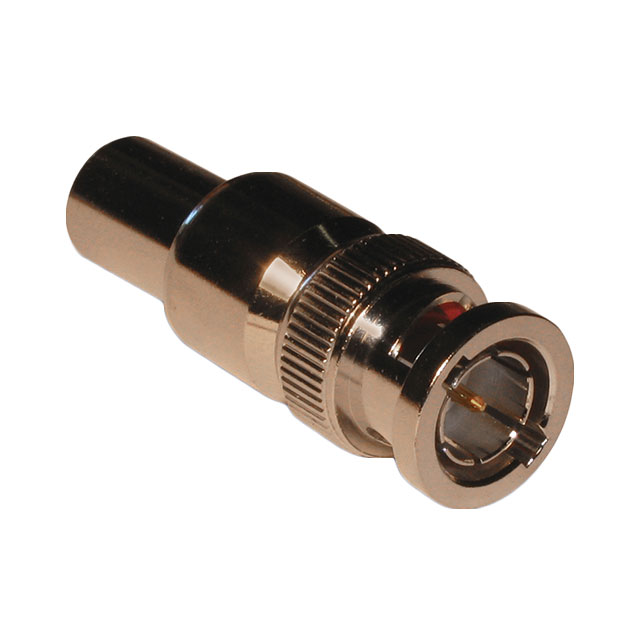

031-70534
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70534 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70534 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70534 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC PLUG STR 75 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.779 | $1.708 | $1.566 | $1.494 | $1.423 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.245 | $1.21 | $1.032 | $0.961 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70534 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC PLUG STR 75 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39443 pcs | Data sheet | 031-70534 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | ARF2574 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 12GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp | Contact Termination | Crimp |
| Connector Type | Plug, Male Pin | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | Belden 1794A, 4794R | Body Material | Brass |
| Body Finish | Nickel |
