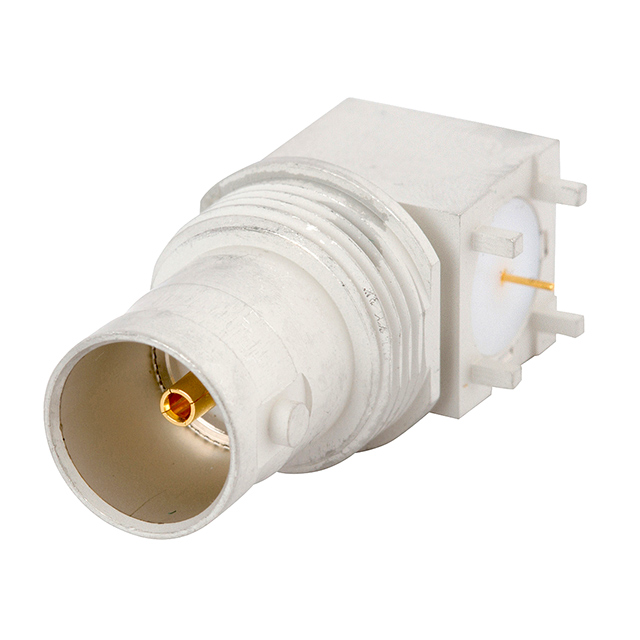

031-70535S-12G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70535S-12G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70535S-12G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70535S-12G |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC R/A JACK 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.533 | $4.121 | $4.018 | $3.709 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.503 | $3.194 | $2.988 | $2.741 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70535S-12G | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC R/A JACK 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14256 pcs | Data sheet | 031-70535S-12G Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | ARF2794 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Housing Color | Silver, Matte | Frequency - Max | 12GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper, Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Tin |
