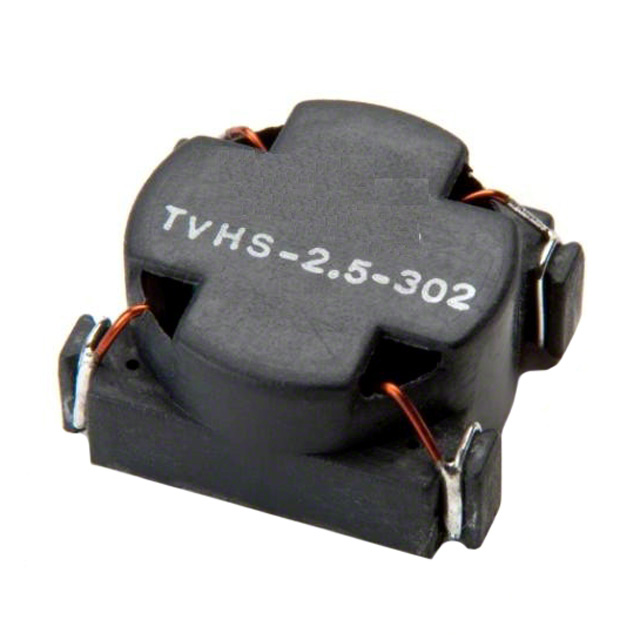

TVHS-2.5-302
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TVHS-2.5-302 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TVHS-2.5-302 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TVHS-2.5-302 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | CMC 3MH 2.5A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 220 pcs | ||||
|---|---|---|---|---|---|
| $1.947 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TVHS-2.5-302 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | CMC 3MH 2.5A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16114 pcs | Data sheet | TVH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 1500V (1.5kV) | Size / Dimension | 0.760" L x 0.662" W (19.31mm x 16.82mm) |
| Series | TVH | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | TVHS25302 TVS-2.5-302 TVS-2.5-302-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 3mH @ 10kHz |
| Height (Max) | 0.390" (9.90mm) | Filter Type | - |
| Features | - | Detailed Description | 3mH @ 10kHz 2 Line Common Mode Choke Surface Mount 2.5A DCR 80 mOhm |
| DC Resistance (DCR) (Max) | 80 mOhm | Current Rating (Max) | 2.5A |
| Approvals | - |
