DLW43SH101XP2L

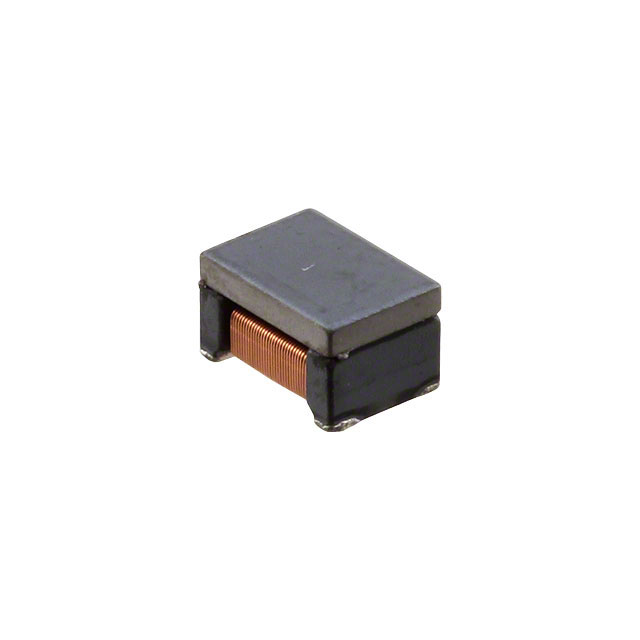

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DLW43SH101XP2L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DLW43SH101XP2L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DLW43SH101XP2L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | CMC 100UH 170MA 2LN SMD AEC-Q200 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.242 | $0.215 | $0.208 | $0.201 | $0.195 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DLW43SH101XP2L | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | CMC 100UH 170MA 2LN SMD AEC-Q200 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105668 pcs | Data sheet | Chip Common Mode Choke Coils Part Number GuideDLx Series Datasheet |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Series | DLW43 | Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR) | Package / Case | 1812 (4532 Metric) |
| Other Names | 490-7980-2 DLW43SH101XP2L-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 100µH @ 100kHz |
| Height (Max) | 0.112" (2.85mm) | Filter Type | Signal Line |
| Features | - | Detailed Description | 100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 170mA DCR 2 Ohm |
| DC Resistance (DCR) (Max) | 2 Ohm | Current Rating (Max) | 170mA |
| Approvals | - |
