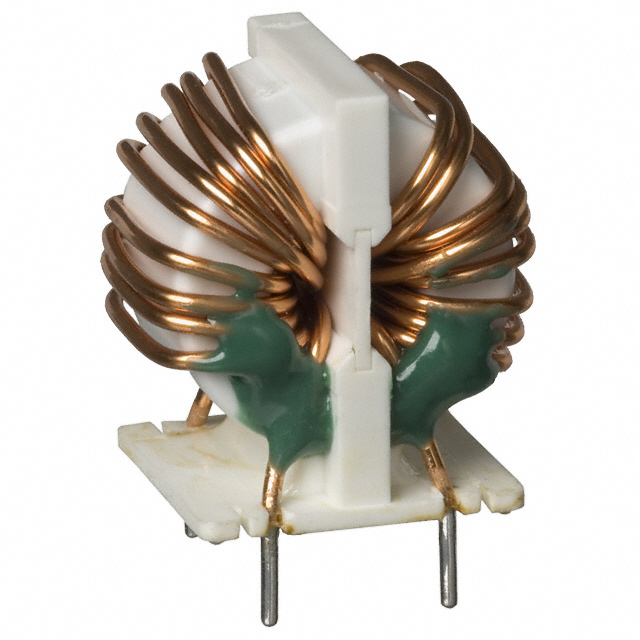

PFC2225BNP-801
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PFC2225BNP-801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PFC2225BNP-801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PFC2225BNP-801 |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | CMC 800UH 8A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.929 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PFC2225BNP-801 | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | CMC 800UH 8A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38403 pcs | Data sheet | PFC2225B |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.984" L x 0.787" W (25.00mm x 20.00mm) |
| Series | PFC | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, No Base, 4 PC Pin |
| Other Names | 308-1405 PFC2225BNP-901 |
Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 800µH @ 1kHz | Height (Max) | 1.063" (27.00mm) |
| Filter Type | - | Features | - |
| Detailed Description | 800µH @ 1kHz 2 Line Common Mode Choke Through Hole 8A DCR 12.5 mOhm | DC Resistance (DCR) (Max) | 12.5 mOhm |
| Current Rating (Max) | 8A | Approvals | - |
