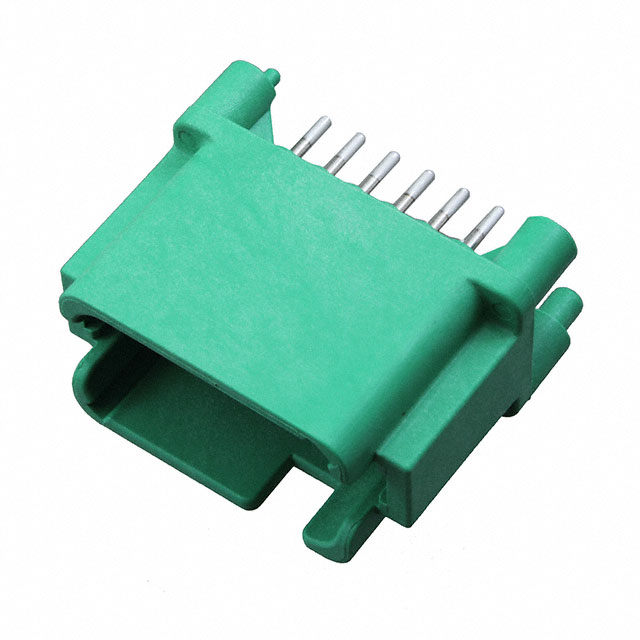

DTF15-12PC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DTF15-12PC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DTF15-12PC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DTF15-12PC |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DTF RECP ASM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.952 | $3.779 | $3.436 | $3.264 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.178 | $2.834 | $2.663 | $2.353 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DTF15-12PC | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DTF RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15655 pcs | Data sheet | DTF15-12Px DrawingDT Series Spec Sheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DTF |
| Row Spacing - Mating | 0.359" (9.12mm) | Pitch - Mating | 0.175" (4.44mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1649 DTF15-12PC-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 1.377" (34.98mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 12 position 0.175" (4.44mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Nickel | Connector Type | Header |
| Applications | Automotive |
