DTF15-12PA

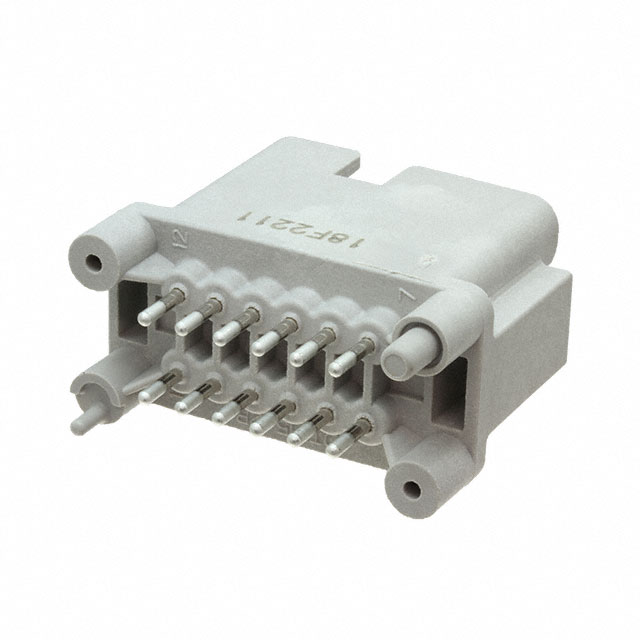

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DTF15-12PA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DTF15-12PA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DTF15-12PA |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DTF RECP ASM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.106 | $3.929 | $3.572 | $3.393 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.304 | $2.947 | $2.768 | $2.447 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DTF15-12PA | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DTF RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16155 pcs | Data sheet | DTF15-12PX Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DTF |
| Row Spacing - Mating | 0.359" (9.12mm) | Pitch - Mating | 0.175" (4.44mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1647 DTF15-12PA-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 1.377" (34.98mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 12 position 0.175" (4.44mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Nickel |
| Connector Type | Header | Applications | Automotive |
