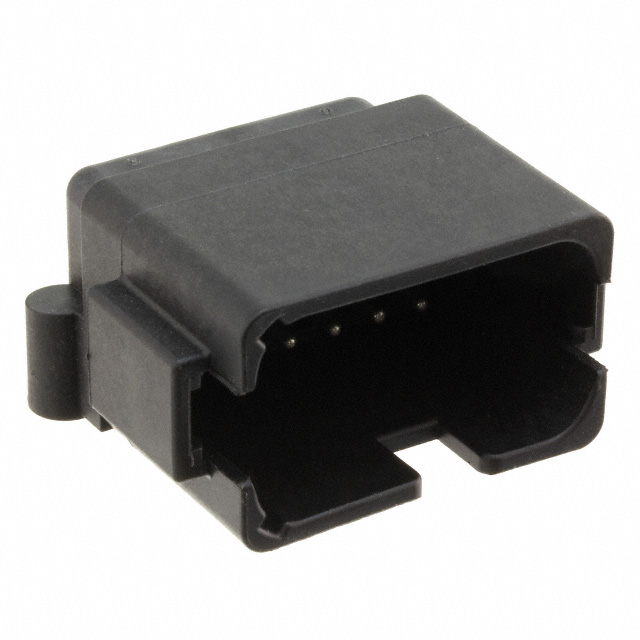

DTF13-12PB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DTF13-12PB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DTF13-12PB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DTF13-12PB |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DT RECP ASM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.119 | $3.743 | $3.65 | $3.369 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.182 | $2.901 | $2.714 | $2.489 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DTF13-12PB | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DT RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12876 pcs | Data sheet | DTF13-12PB Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DTF |
| Row Spacing - Mating | - | Pitch - Mating | 0.215" (5.46mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1032 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.909" (23.09mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.215" (5.46mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
