5646529-1

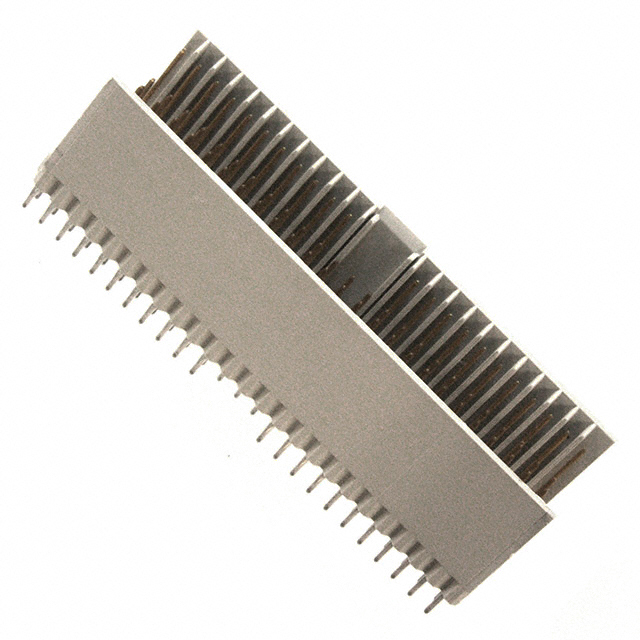

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5646529-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5646529-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5646529-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 169POS VERT 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.116 | $3.939 | $3.581 | $3.402 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.312 | $2.954 | $2.775 | $2.453 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5646529-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 169POS VERT 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14310 pcs | Data sheet | 5646529 |
| Category | Connectors, Interconnects | Voltage Rating | 500Vrms |
| Termination | Press-Fit | Series | Z-PACK |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 56465291 A97813 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 5 + 2 | Number of Positions Loaded | All |
| Number of Positions | 169 (125 + 44 Ground) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | 169 (125 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole | Current Rating | 1.5A |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins |
| Connector Style | AB 25 |
