5646513-1

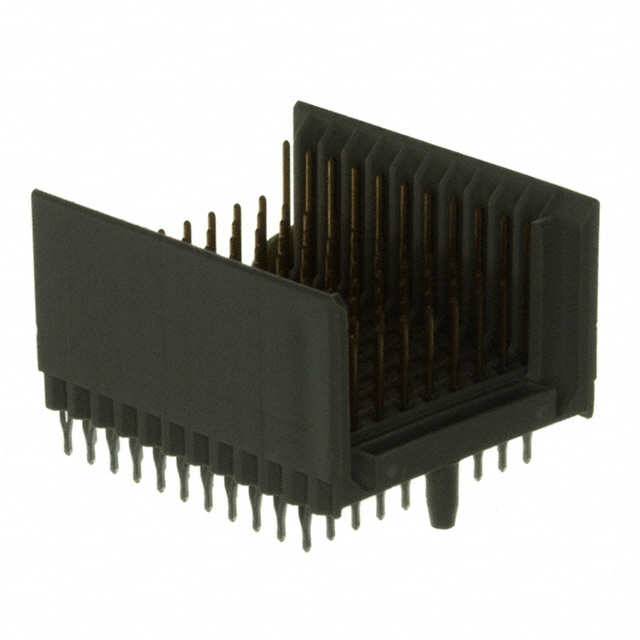

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5646513-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5646513-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5646513-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 88POS VERT 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $2.931 | $2.81 | $2.565 | $2.443 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $2.321 | $2.077 | $1.955 | $1.71 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5646513-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 88POS VERT 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22470 pcs | Data sheet | 5646513 |
| Category | Connectors, Interconnects | Voltage Rating | 750Vrms |
| Termination | Press-Fit | Series | Z-PACK |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | A97819 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 8 + 2 | Number of Positions Loaded | All |
| Number of Positions | 110 (88 + 22 Ground) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide |
| Detailed Description | 110 (88 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole | Current Rating | 1.5A |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | Backplane | Connector Type | Header, Male Pins |
| Connector Style | F 11 |
