5646547-1

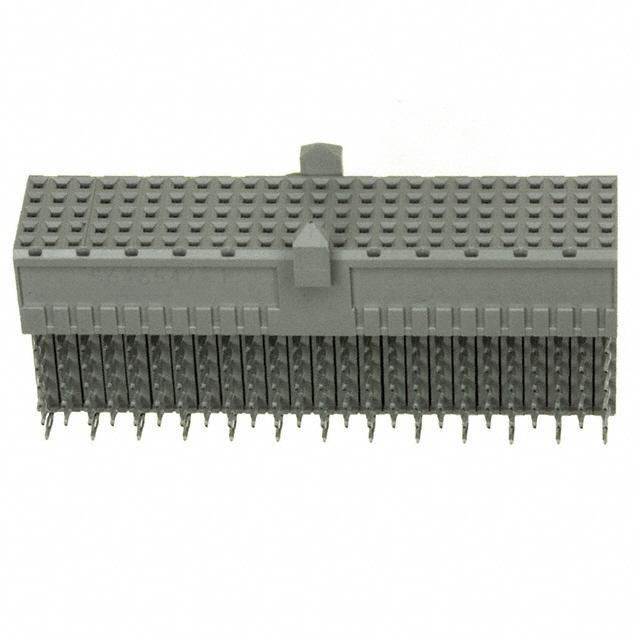

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5646547-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5646547-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5646547-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HM 125POS RT ANG 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.858 | $5.441 | $4.883 | $4.743 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.185 | $3.906 | $3.822 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5646547-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HM 125POS RT ANG 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8029 pcs | Data sheet | 5646547 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500Vrms |
| Termination | Press-Fit | Series | Z-PACK |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 56465471 A97817 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 5 | Number of Positions Loaded | All |
| Number of Positions | 125 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Upper Shield |
| Detailed Description | 125 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle | Current Rating | 1.5A |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Female Sockets |
| Connector Style | AB 25 |
