52422-3

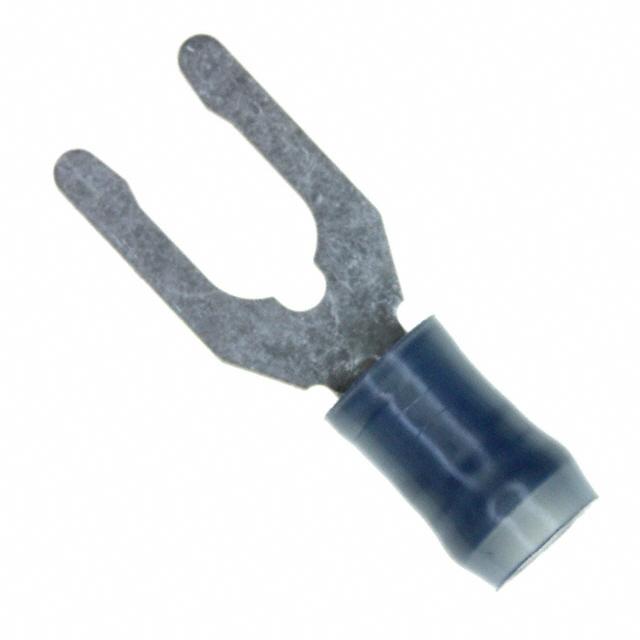

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52422-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52422-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52422-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 14-16AWG #10 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.08 | $0.074 | $0.073 | $0.072 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52422-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 14-16AWG #10 BLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 306933 pcs | Data sheet | 52422 |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.343" (8.71mm) | Tongue Inside Opening | 0.190" (4.83mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Tape & Reel (TR) | Other Names | 52422-3-ND A28164 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 16 Weeks |
| Length - Termination | 0.414" (10.52mm) | Length - Ring Center to Termination | 0.283" (7.19mm) |
| Length - Overall | 1.005" (25.53mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material | Phosphor Bronze | Contact Finish | Tin |
| Color | Blue |
