52423

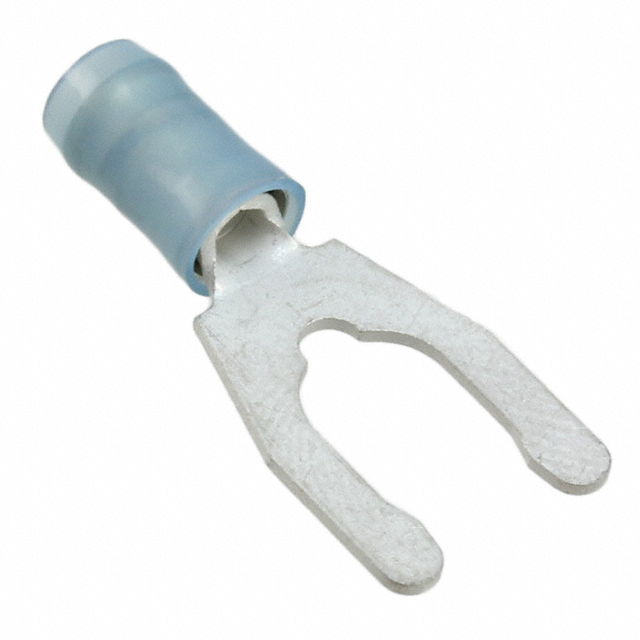

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52423 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52423 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52423 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 14-16AWG #1/4 |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.413 | $0.363 | $0.342 | $0.327 | $0.313 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.285 | $0.256 | $0.228 | $0.206 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52423 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 14-16AWG #1/4 | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 103477 pcs | Data sheet | 52423 |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.437" (11.10mm) | Tongue Inside Opening | 0.250" (6.35mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 1/4 Stud | Series | PIDG |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 14 Weeks | Length - Termination | 0.414" (10.52mm) |
| Length - Ring Center to Termination | 0.345" (8.76mm) | Length - Overall | 1.102" (27.99mm) |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Diameter | 0.105" ~ 0.150" (2.67mm ~ 3.81mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Blue 1/4 Stud Spade Terminal Connector Crimp 14-16 AWG | Contact Material | Phosphor Bronze |
| Contact Finish | Tin | Color | Blue |
