52420-1

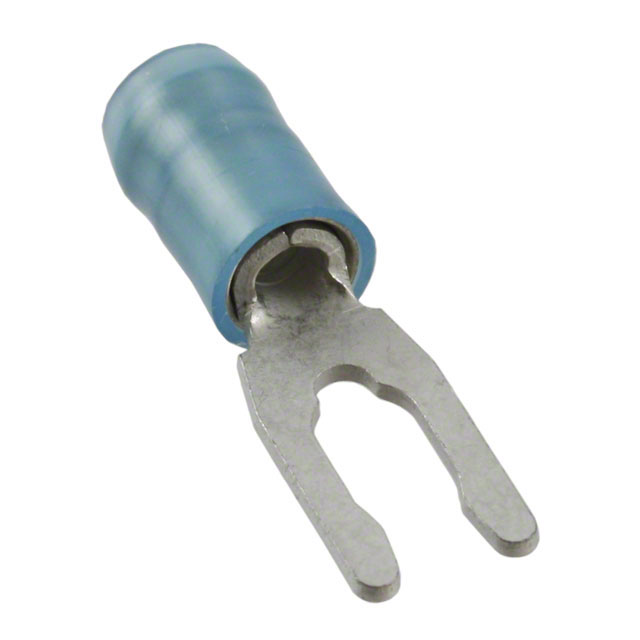

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52420-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52420-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52420-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 14-16AWG #6 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.393 | $0.346 | $0.325 | $0.312 | $0.298 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.271 | $0.244 | $0.217 | $0.197 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52420-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 14-16AWG #6 BLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121131 pcs | Data sheet | 52420 |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.250" (6.35mm) | Tongue Inside Opening | 0.140" (3.56mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 52420-1-ND A27446 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 13 Weeks |
| Length - Termination | 0.414" (10.52mm) | Length - Ring Center to Termination | 0.238" (6.05mm) |
| Length - Overall | 0.933" (23.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material | Phosphor Bronze | Contact Finish | Tin |
| Color | Blue |
