1825223-3

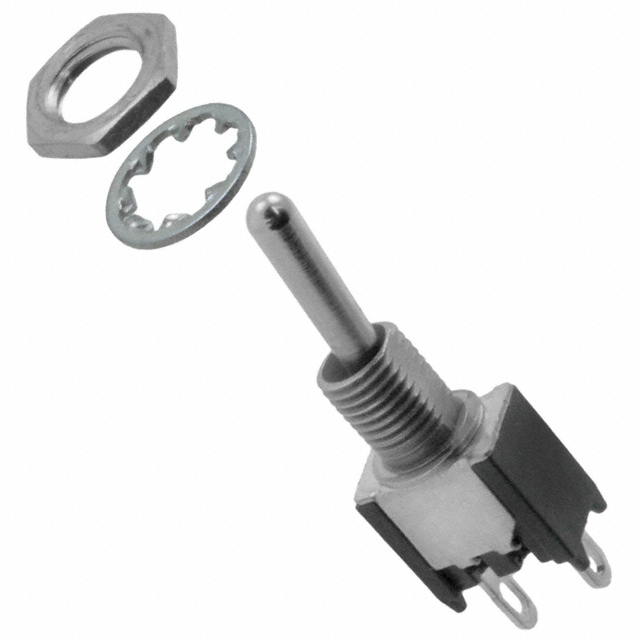

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1825223-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1825223-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1825223-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH TOGGLE SPST 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.524 | $4.404 | $4.285 | $4.047 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.928 | $3.809 | $3.214 | $3.095 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1825223-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TOGGLE SPST 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9601 pcs | Data sheet | Tiny Toggle Series, Quick Ref GuideTT Series |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Off | Series | TT |
| Panel Cutout Dimensions | Circular - 4.83mm Dia | Packaging | Bulk |
| Other Names | 1825223-3-ND 18252233 450-1812 TT13A3T04 TT13A3T04-ND |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 20,000 Cycles |
| Detailed Description | Toggle Switch SPST Panel Mount | Current Rating | 3A (AC/DC) |
| Circuit | SPST | Bushing Thread | 10-48 |
| Actuator Type | Standard Round | Actuator Material | Brass, Nickel Plated |
| Actuator Length | 9.68mm |
