1825222-7

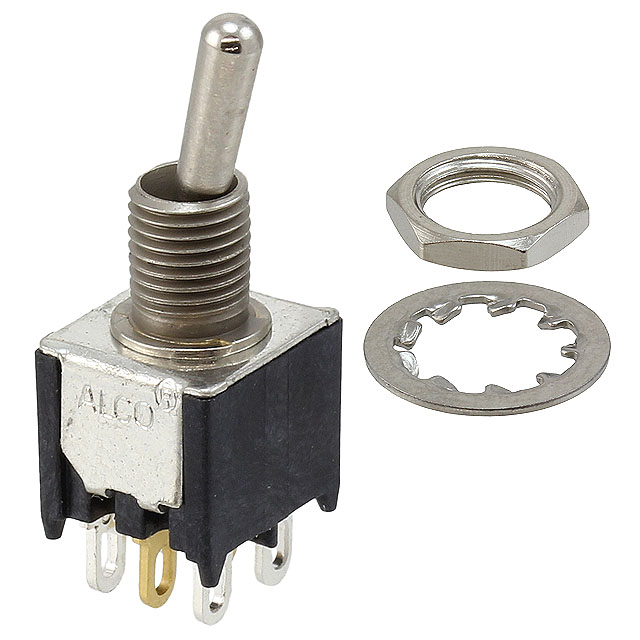

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1825222-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1825222-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1825222-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH TOGGLE DPDT 3A 125 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $4.165 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1825222-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 3A 125 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7197 pcs | Data sheet | 1825222 Series DrawingSwitches Core Program CatalogTiny Toggle Series, Quick Ref Guide |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | TT |
| Panel Cutout Dimensions | Circular - 4.83mm Dia | Packaging | Bulk |
| Other Names | 450-2033 TT23N2T04 TT23N2T04-ND |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Electrical Life | 80,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 3A (AC/DC) |
| Circuit | DPDT | Bushing Thread | 10-48 |
| Actuator Type | Standard Round | Actuator Material | Brass, Nickel Plated |
| Actuator Length | 7.52mm |
