1825222-3

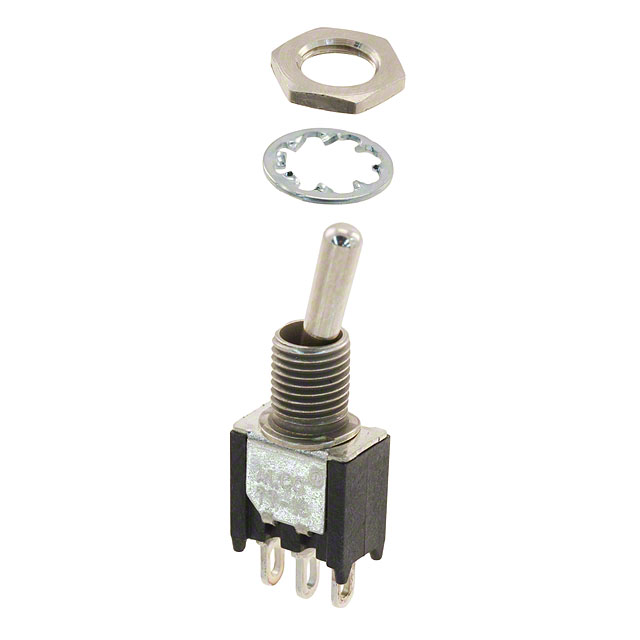

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1825222-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1825222-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1825222-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH TOGGLE SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.857 | $3.754 | $3.652 | $3.449 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.348 | $3.246 | $2.739 | $2.638 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1825222-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TOGGLE SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14310 pcs | Data sheet | 1825222 Series DrawingSwitches Core Program CatalogTiny Toggle Series, Quick Ref Guide |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | TT |
| Panel Cutout Dimensions | Circular - 4.83mm Dia | Packaging | Bulk |
| Other Names | TT13D2T04 TT13D2T04-ND |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 80,000 Cycles | Detailed Description | Toggle Switch SPDT Panel Mount |
| Current Rating | 3A (AC/DC) | Circuit | SPDT |
| Bushing Thread | 10-48 | Actuator Type | Standard Round |
| Actuator Material | Brass, Nickel Plated | Actuator Length | 7.52mm |
