171505-1

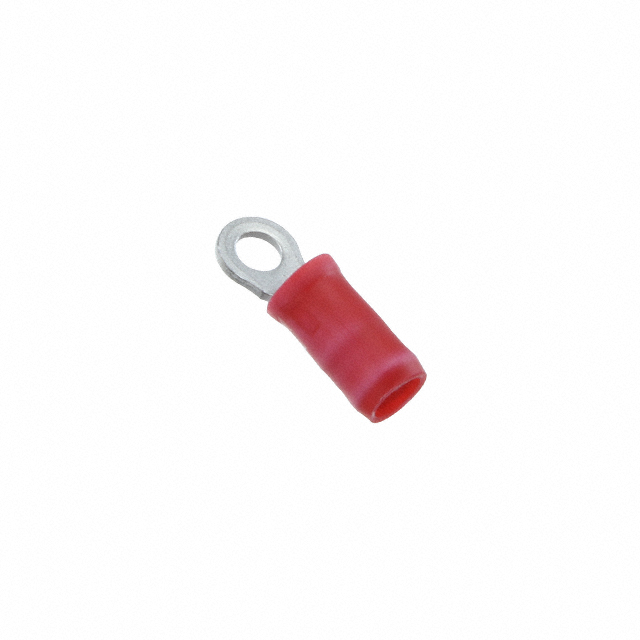

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 171505-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 171505-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 171505-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 18-22AWG #4 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.344 | $0.304 | $0.286 | $0.274 | $0.262 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.238 | $0.214 | $0.191 | $0.173 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 171505-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #4 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129784 pcs | Data sheet | 171505 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.217" (5.50mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 4 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 171505-1-ND A135202 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 15 Weeks |
| Length - Overall | 0.650" (16.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
