1715010000

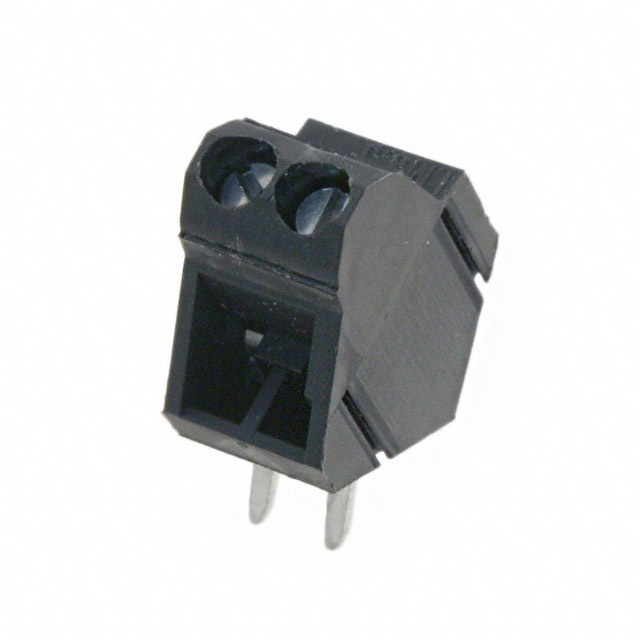

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1715010000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1715010000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1715010000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | CONN TERM BLOCK PCB 3.5MM 2POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.664 | $0.466 | $0.434 | $0.394 | $0.392 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.331 | $0.314 | $0.279 | $0.227 | ||
- Product parameter
Product parameter
| Part Number | 1715010000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | CONN TERM BLOCK PCB 3.5MM 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91523 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Termination | Screw - Clamping Yoke, Tension Sleeve |
| Wire Gauge | 14-22 AWG | Voltage | 300V |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) | Series | Omnimate LM |
| Screw Thread | M2 | Screw Material - Plating | - |
| Positions Per Level | 2 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 171501 281-1407 LM 3.50/135/2 |
| Operating Temperature | -20°C ~ 100°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Mating Orientation | 45° (135°) Angle with Board |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Features | Interlocking (Side) |
| Detailed Description | 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole | Current | 10A |
| Contact Material - Plating | Copper Tin Alloy - Tin Plated | Color | Black |
| Clamp Material - Plating | - |
