171506-3

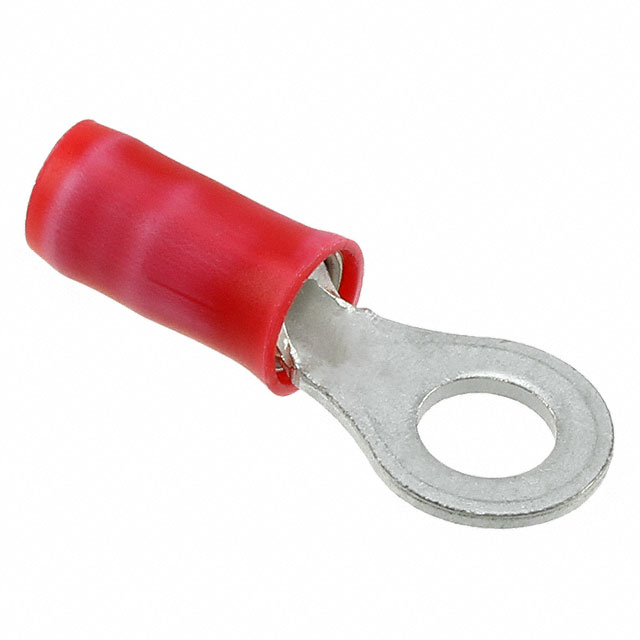

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 171506-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 171506-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 171506-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 18-22AWG #8 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 171506-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #8 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5120 pcs | Data sheet | 171506 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.311" (7.90mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 171506-3-ND A122329 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Length - Overall | 0.823" (20.90mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Ring Terminal Connector 8 Stud Circular 18-22 AWG Crimp | Contact Material | Copper |
| Contact Finish | Tin | Color | Red |
