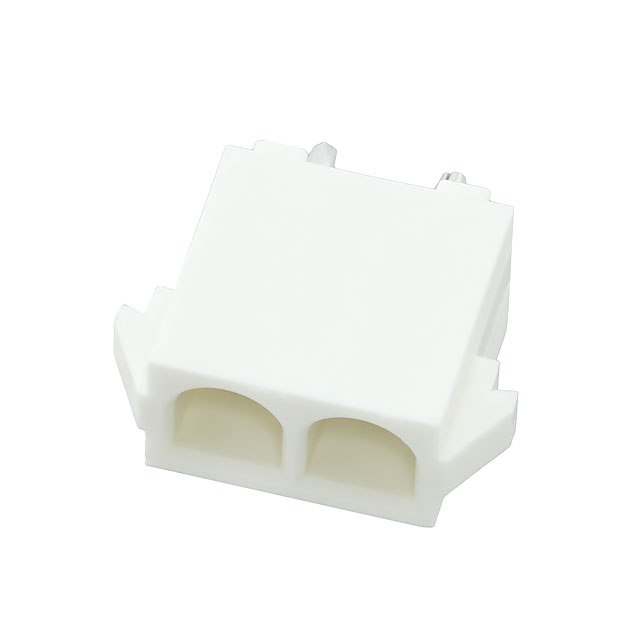

1586866-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1586866-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1586866-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1586866-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 02P UMNL HDR ASSY V2, GW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.509 | $0.46 | $0.395 | $0.329 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.282 | $0.25 | $0.244 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1586866-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 02P UMNL HDR ASSY V2, GW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97654 pcs | Data sheet | 1586866 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Universal MATE-N-LOK | Row Spacing - Mating | - |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-2 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.580" (14.73mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Latch Lock |
| Detailed Description | 2 Position Socket Connector Through Hole | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Socket | Applications | - |
