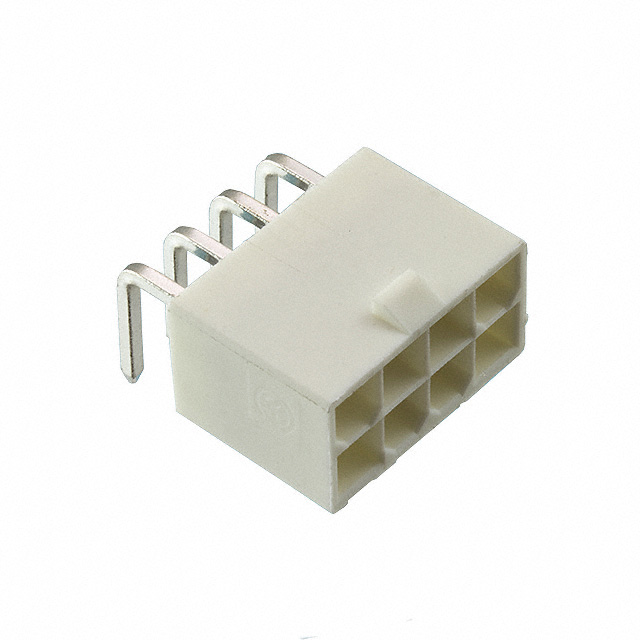

1586863-8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1586863-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1586863-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1586863-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 8POS R/A DL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 210 pcs | 630 pcs | |
|---|---|---|---|---|---|
| $0.459 | $0.402 | $0.347 | $0.284 | ||
| 1050 pcs | 5040 pcs | 10080 pcs | |||
| $0.252 | $0.221 | $0.21 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1586863-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 8POS R/A DL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101211 pcs | Data sheet | 1586863 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | VAL-U-LOK |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-2 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.402" (10.20mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Glow Wire Compliant | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm) | Current Rating | 9A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial, Lighting |
