1586892-1

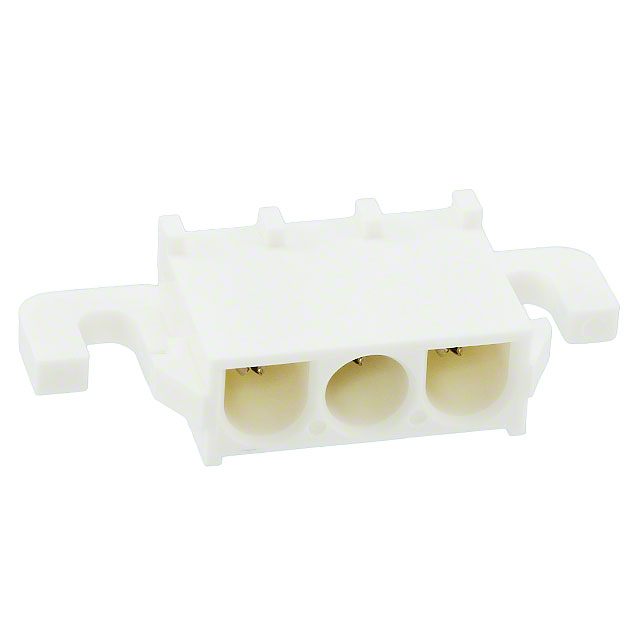

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1586892-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1586892-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1586892-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 03P UMNL HDR ASSY R/A, GW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.506 | $0.458 | $0.43 | $0.411 | $0.392 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.355 | $0.327 | $0.28 | $0.262 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1586892-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 03P UMNL HDR ASSY R/A, GW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82556 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet1586892 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Universal MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116827 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.360" (9.14mm) | Insulation Color | - |
| Ingress Protection | - | Features | Glow Wire Compliant, Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.250" (6.35mm) |
| Current Rating | 12A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.160" (4.06mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | - |
| Connector Type | Header | Applications | General Purpose |
