1-770849-3

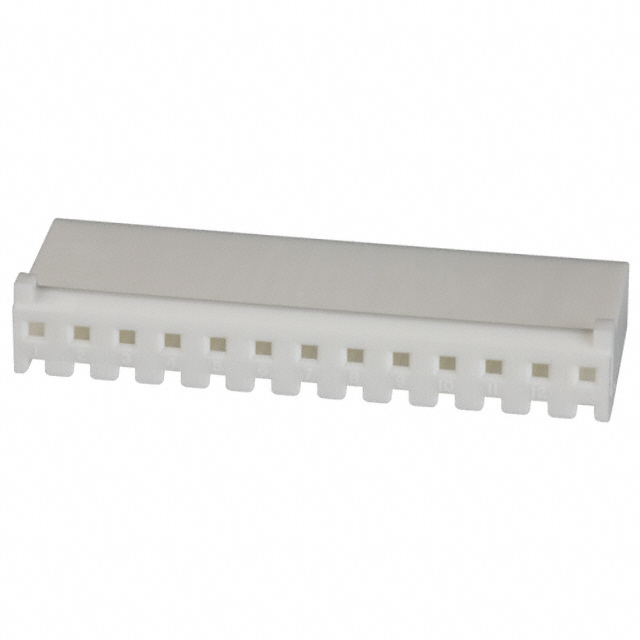

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-770849-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-770849-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-770849-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 13POS W/RAMP SL156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.23 | $0.215 | $0.194 | $0.172 | $0.165 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.151 | $0.143 | $0.118 | $0.108 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-770849-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 13POS W/RAMP SL156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 202637 pcs | Data sheet | 770849 Drawing |
| Category | Connectors, Interconnects | Series | SL-156 |
| Row Spacing | - | Pitch | 0.156" (3.96mm) |
| Packaging | Bulk | Other Names | 1-770849-3-ND 17708493 A24122 |
| Number of Rows | 1 | Number of Positions | 13 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key |
| Fastening Type | Locking Ramp | Detailed Description | 13 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) |
| Contact Type | Female Socket | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Natural |
