1-5530844-7

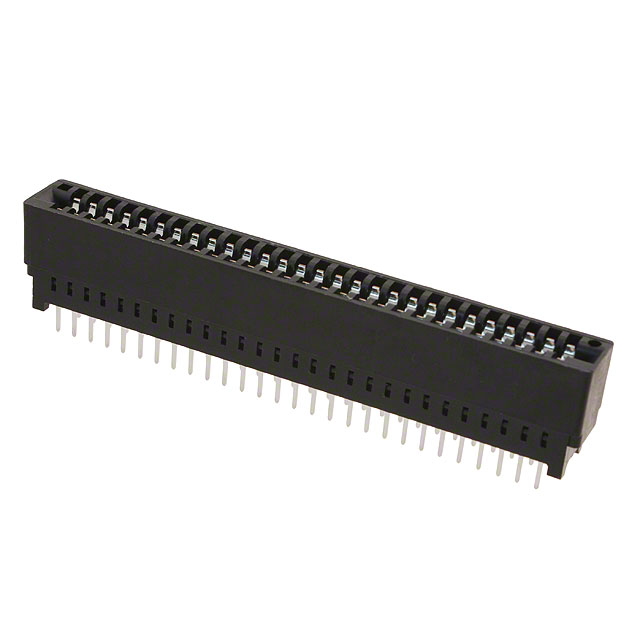

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5530844-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5530844-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5530844-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 56POS 0.125 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5530844-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 56POS 0.125 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4526 pcs | Data sheet | 5530844 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Standard Edge II | Read Out | Dual |
| Pitch | 0.125" (3.18mm) | Packaging | Bulk |
| Other Names | 1-5530844-7-ND A134969 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 56 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | - |
| Contact Type | - | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
