1-5530841-1

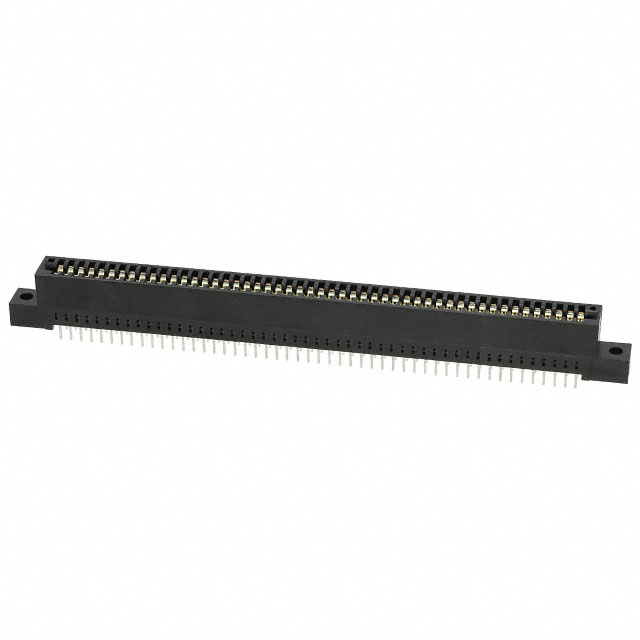

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5530841-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5530841-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5530841-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 100POS .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.17 | $2.079 | $1.899 | $1.808 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.718 | $1.537 | $1.447 | $1.356 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5530841-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 100POS .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24020 pcs | Data sheet | 5530841-2 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Standard Edge II | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 1-5530841-1-ND A112391 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Features | - | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
