503566-2300
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 503566-2300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 503566-2300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 503566-2300 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

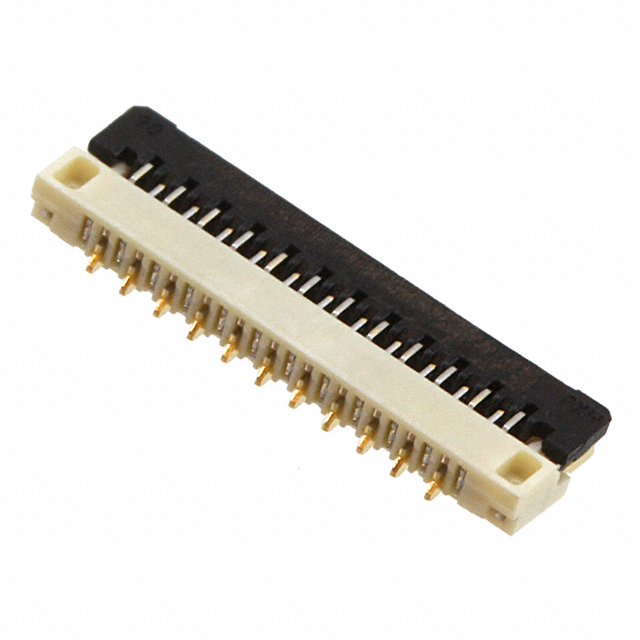

| Description | CONN FPC BOTTOM 23POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | 15000 pcs | |
|---|---|---|---|---|---|
| $0.251 | $0.242 | $0.23 | $0.225 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 503566-2300 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 23POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95387 pcs | Data sheet | 503566 Series Spec503566 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 503566 |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Other Names | 503566-2300-TR750 5035662300 WM8978TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 23 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | White |
| Height Above Board | 0.037" (0.95mm) | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 23 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
