5035521680

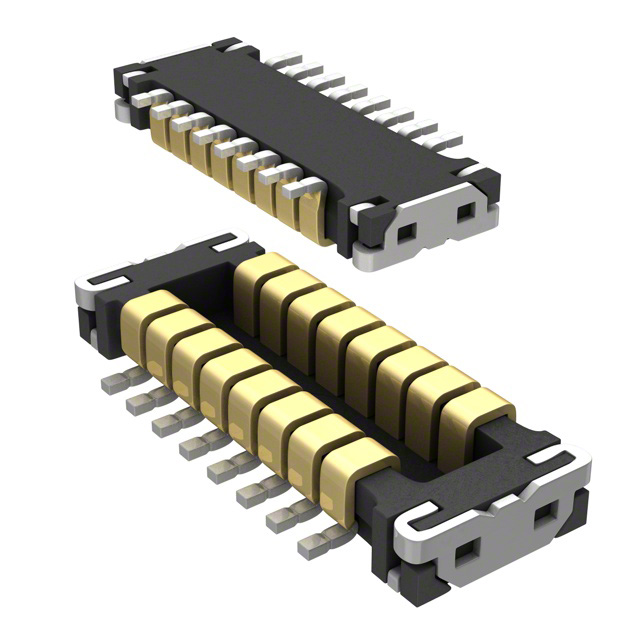

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5035521680 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5035521680 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5035521680 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG BTB 16POS CHECKER TYPE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.286 | $0.245 | $0.237 | $0.229 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5035521680 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG BTB 16POS CHECKER TYPE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96849 pcs | Data sheet | 503552 Series Drawing |
| Category | Connectors, Interconnects | Series | SlimStack 503552 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 503552-1680 503552-1680-TR750 WM8986TR |
Number of Rows | 2 |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 0.7mm |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.022" (0.57mm) | Features | Solder Retention |
| Detailed Description | 16 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
