503566-2100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 503566-2100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 503566-2100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 503566-2100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

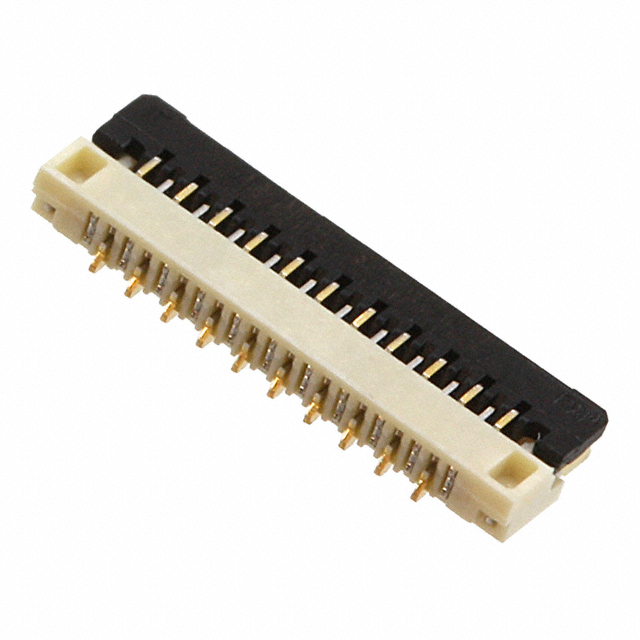

| Description | CONN FPC BOTTOM 21POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.741 | $0.673 | $0.631 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.604 | $0.576 | $0.521 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 503566-2100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 21POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72546 pcs | Data sheet | 503566 Series Spec503566 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 503566 |
| Pitch | 0.012" (0.30mm) | Packaging | Original-Reel® |
| Other Names | WM8979DKR | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 21 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Manufacturer Standard Lead Time | 11 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | White |
| Height Above Board | 0.037" (0.95mm) | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 21 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
