502250-2191

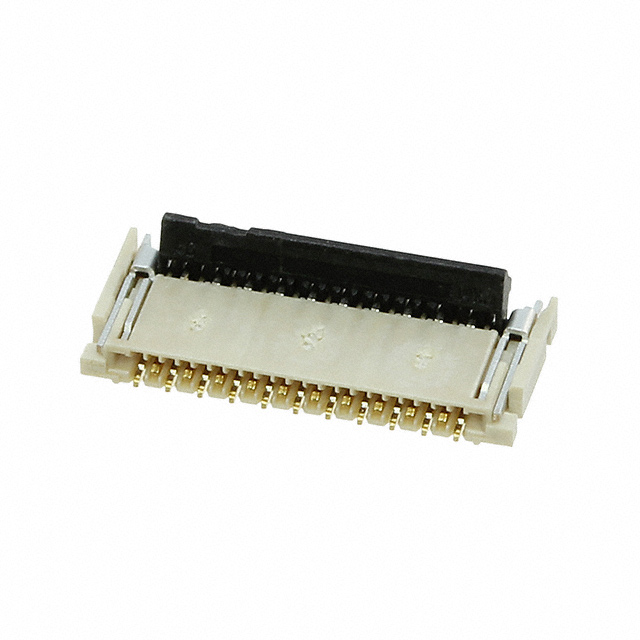

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 502250-2191 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 502250-2191 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 502250-2191 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC 21POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.567 | $0.512 | $0.494 | $0.476 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 502250-2191 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC 21POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77467 pcs | Data sheet | 502250-xx(91,20) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | BackFlip, Easy-On 502250 |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Other Names | 0502250-2191 0502250-2191-C 05022502191 05022502191-C 502250-2120 502250-2191-C 502250-2191-ND 502250-2191-TR750 5022502191 5022502191-C WM2233TR |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 21 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Natural |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 21 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Notched or Tabbed | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Black |
