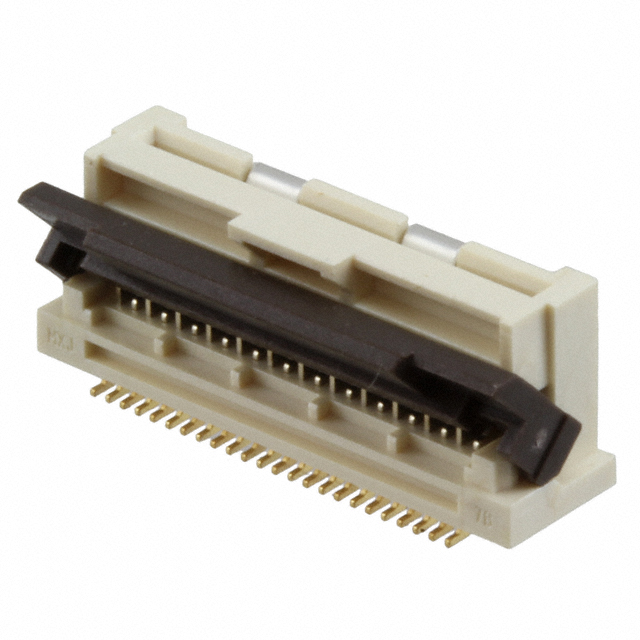

5022312400
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5022312400 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5022312400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5022312400 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 24POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.333 | $0.322 | $0.311 | $0.295 | $0.289 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5022312400 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 24POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74443 pcs | Data sheet | 5022312400 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 502231 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 00502231-2400 0502231-2400 502231-2400 5022312400-ND WM9863TR |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 22 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Natural |
| Height Above Board | 0.238" (6.05mm) | Flat Flex Type | FFC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 24 Position FFC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.4A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Actuator Color | Brown |
