| Part Number | 5022250801 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

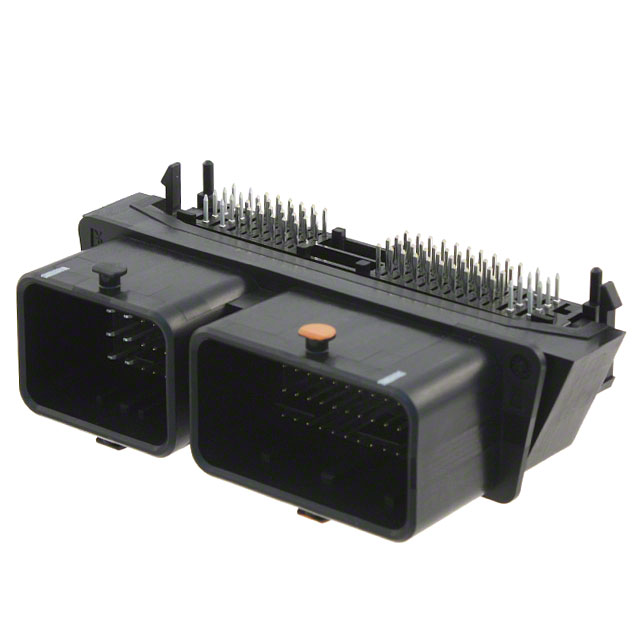

| Description | CONN HDR 80POS R/A 2-POCKET CMC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 64 pcs | 128 pcs | 512 pcs | 1024 pcs |
|---|---|---|---|---|---|
| $2.563 | $2.136 | $2.029 | $1.709 | $1.495 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5022250801 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HDR 80POS R/A 2-POCKET CMC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21284 pcs | Data sheet | 5022250801 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CMC 502225 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0502225-0801 502225-0801 WM4531 |
Operating Temperature | - |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 80 (48 + 32) | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.980" (24.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock, Mounting Flange |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Board Edge, Through Hole, Right Angle 80 (48 + 32) position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
