501594-2611

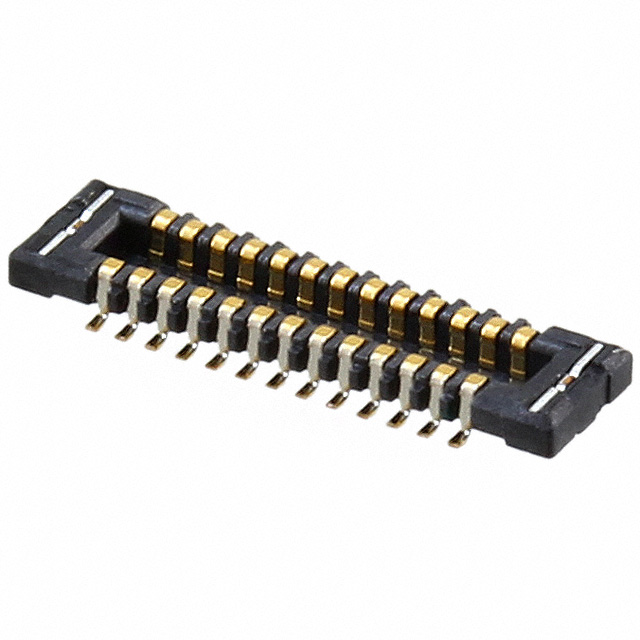

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501594-2611 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501594-2611 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501594-2611 |
|---|---|
| Manufacturer | Molex Connector Corporation |
| Description | CONN PLUG 26POS VERT .4MM SL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | ||||
|---|---|---|---|---|---|
| $0.30 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501594-2611 | Manufacturer | Molex Connector Corporation |
|---|---|---|---|
| Description | CONN PLUG 26POS VERT .4MM SL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79966 pcs | Data sheet | 501594 Drawing501591,501594 Series Spec |
| Category | Connectors, Interconnects | Series | SlimStack™ 501594 |
| RoHS Status | Tape & Reel (TR) | Other Names | 501594-2611-TR750 5015942611 WM9067TR |
| Number of Rows | 2 | Number of Positions | 26 |
| Number of Conductors | 0.016" (0.40mm) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | 501594-2611 | Length - Post (Mating) | 0.9mm |
| Height Above Board | 0.028" (0.71mm) | Features | Solder Retention |
| Expanded Description | 26 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Description | CONN PLUG 26POS VERT .4MM SL SMD |
| Contact Finish Thickness | Gold | Connector Type | Plug, Outer Shroud Contacts |
| Cable Diameter | 3.9µin (0.10µm) |
