5015917011

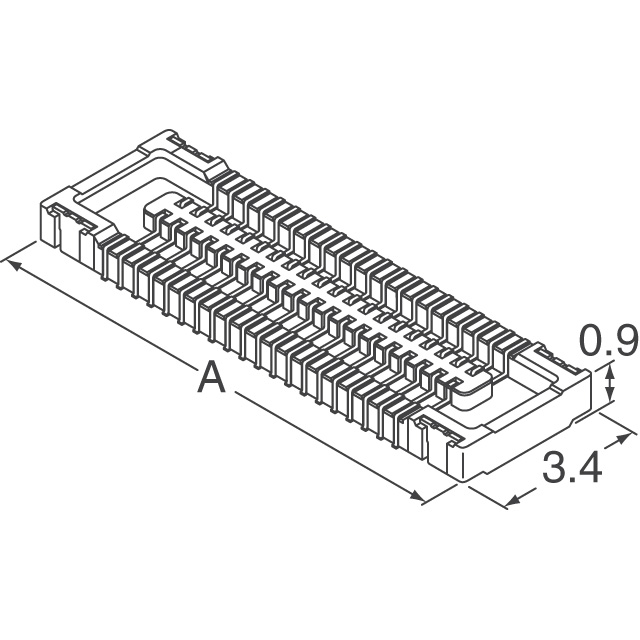

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5015917011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5015917011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5015917011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 70POS VERT DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 12000 pcs | ||||
|---|---|---|---|---|---|
| $0.944 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5015917011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 70POS VERT DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38079 pcs | Data sheet | 501591-xx1(0,1), 501594-xx2(0,1) Product Spec501591 Drawing501591,501594 Series Spec501591 Series Pkg Spec |
| Category | Connectors, Interconnects | Series | SlimStack 501591 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 0501591-7011 0501591-7011-C 05015917011 05015917011-C 501591-7010 501591-7011 501591-7011-C 501591-7011-ND 5015917011-C WM24044 WM24044-ND WM24044TR |
Number of Rows | 2 |
| Number of Positions | 70 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 0.9mm |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.035" (0.88mm) | Features | Solder Retention |
| Detailed Description | 70 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
