501594-2011

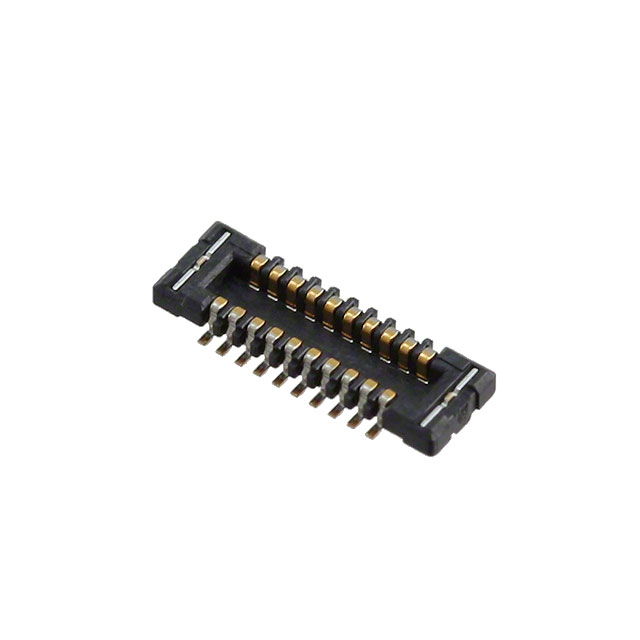

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501594-2011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501594-2011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501594-2011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 20POS VERT DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.946 | $0.907 | $0.832 | $0.794 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.756 | $0.661 | $0.643 | $0.548 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501594-2011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG 20POS VERT DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70145 pcs | Data sheet | 501594 Drawing501591,501594 Series Spec |
| Category | Connectors, Interconnects | Series | SlimStack 501594 |
| Pitch | 0.016" (0.40mm) | Packaging | Cut Tape (CT) |
| Other Names | WM24045 WM24045-ND WM24045CT |
Number of Rows | 2 |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 0.9mm |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.028" (0.71mm) | Features | Solder Retention |
| Detailed Description | 20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
