39-01-3109

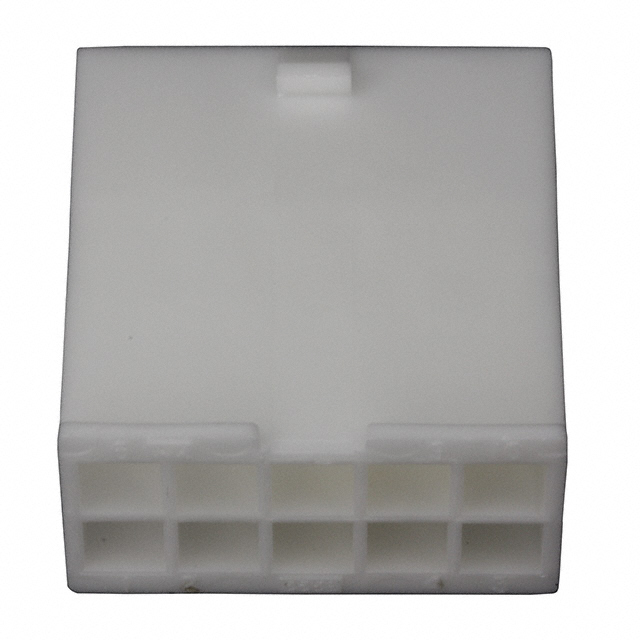

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39-01-3109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39-01-3109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39-01-3109 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 10POS VERT DUAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.289 | $0.272 | $0.245 | $0.218 | $0.209 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.19 | $0.181 | $0.15 | $0.136 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39-01-3109 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG 10POS VERT DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 151959 pcs | Data sheet | 5559-NPI5556-001 Prod Spec |
| Category | Connectors, Interconnects | Series | Mini-Fit Jr 5559 |
| Row Spacing | 0.165" (4.20mm) | Pitch | 0.165" (4.20mm) |
| Packaging | Bulk | Other Names | 0039-01-3109 0039-01-3109-E 0039013109 0039013109-E 39-01-3109-E 39013109 39013109-E 5559-10P1-210 WM24064 |
| Number of Rows | 2 | Number of Positions | 10 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 10 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm) |
| Contact Type | Male Pin | Contact Termination | Crimp |
| Connector Type | Plug | Color | Natural |
